Heavy-duty UAV with vertical take-off and landing

The war that russia started against Ukraine showed that huge changes are taking place in the nature of warfare, and most importantly, in the technology used.The fighting between Azerbaijan and Armenia demonstrated for the first time that the use of UAVs has dramatically changed the tactics of war.
The use of combat UAVs has seriously changed the requirements for military equipment.The tanks needed protection from being hit by ammunition from above.
Artillery needed mobility. Non-self-propelled artillery mounts were immediately destroyed.
Everyone needed cover with electronic warfare equipment.
And much more…

And the need for changes is caused precisely by the massive use of UAVs.

And this despite the fact that vertically taking off reusable heavy class UAVs with a payload of more than 100 kg are completely absent.
Namely, such UAVs can and should have an even greater impact on the nature of combat operations. And in all aspects.

And our team is working on creating such a vertical take-off and landing UAV.

UAVs with vertical takeoff and landing, with a payload of more than 100 kg, working in conjunction with small reconnaissance UAVs are capable of inflicting enormous damage on the enemy. A stealthy UAV can “hover” in the air and conduct target reconnaissance and target weapons that can be used by a heavy UAV. Which can “work” against scouted targets “from a jump” – from a ravine, from behind a landing, for example. It does not need to hang high in the air for long, so it would be difficult to destroy.
He jumped up, fired rockets or fired off a package of grenade launchers, and again went behind cover…

I’m sure there could be many use cases for such heavy UAVs.

The point is to launch such UAVs into production.

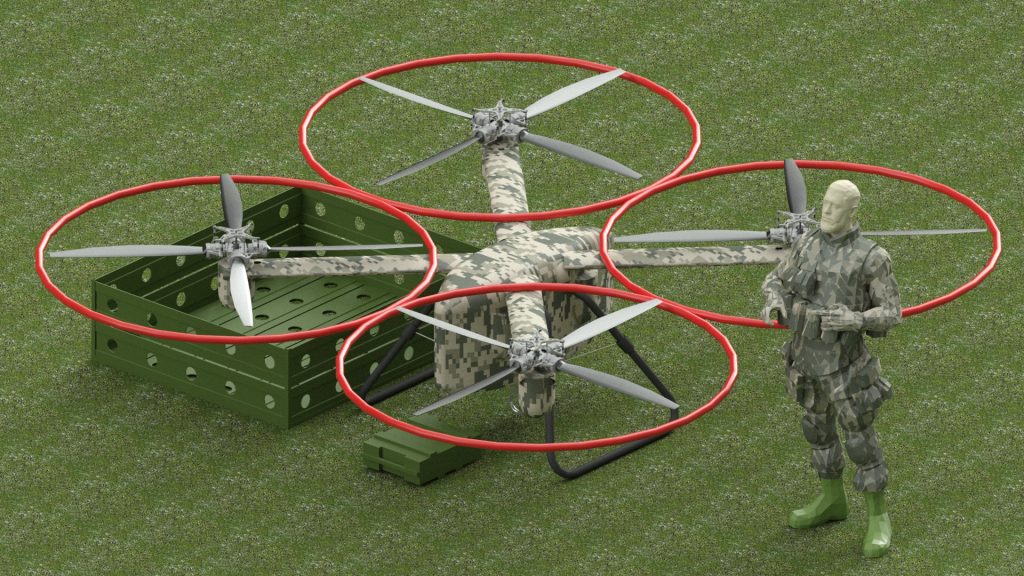

1. Transport UAVs.



Delivery of ammunition, food, and additional weapons directly to the front lines without the use of vehicles (often it is simply impossible to use cars, due to the almost 100% possibility of the death of drivers and accompanying people) will ensure a prompt response to the needs of non-front line fighters.
Possibility of delivering cargo to sabotage and reconnaissance groups. When the use of helicopters is not possible.

2. Sanitary evacuation UAVs.

The use of such devices would significantly speed up the delivery of seriously wounded soldiers to the medical unit. In 20 minutes the device is capable of delivering a wounded person 40-50 km away. This would significantly increase the life chances of many fighters. After all, medical vehicles cannot arrive directly from the front line. And UAVs with vertical take-off and landing will land on any piece of land. And flying at extremely low altitudes above one’s territory practically eliminates their defeat by the enemy.

3. Attack UAVs.



DESIGN OF A HEAVY CLASS UAV WITH VERTICAL TAKE-OFF AND LANDING.

The design of a UAV in comparison with a manned vehicle is much simpler.
With a payload of about 100 kg, it is possible to use one internal combustion engine, and the design of the transmission is significantly simplified. There is no need to use a parachute rescue system.
Therefore, we are ready to quickly (6 months) produce a sample for flight testing.

Our project was originally created in 2017 to develop as the main option – a manned vertical take-off and landing vehicle with electronic control.
But in essence, such a device is the same UAV, only the control signals to the flight controller come not from the receiver (as in a UAV), but directly from the control joystick in the cockpit.
That is, in principle, the UAV and the manned vehicle are 90-95% the same.
Therefore, in fact, we are creating a universal platform that can be used for different purposes.

We have already come a long way during the development of our project and have completed the stage of ground testing.
The design of the apparatus components has been worked out and tested.
And most importantly, our team ALREADY HAS PRACTICAL EXPERIENCE! We don’t just offer computer pictures!

We are ready to continue working on the project in terms of creating a heavy-class vertical take-off and landing UAV for the Armed Forces of Ukraine. We need funding to build a flight model.

I am convinced that such a device is REALLY NEEDED by our soldiers!
And its creation will speed up our Victory and save many lives of our soldiers!

GLORY TO UKRAINE!!!

NOW WE NEED AN INVESTOR TO BUILD A FLYING SAMPLE OF THE APPARATUS FOR FLIGHT TESTS.

WE HAVE DEVELOPED THE DESIGN OF THE DEVICE WITH CONSIDERATION OF THE POSSIBILITY OF PUTTING INTO PRODUCTION AS QUICKLY AS POSSIBLE.

THIS IS WHY WE AVOID USING EXOTIC HIGH-TECH MATERIALS.

SERIALLY PRODUCED PARTS, ASSEMBLY AND MECHANISMS ARE USED TO THE MAXIMUM. PRODUCTION OF UNITS AND PARTS OF THE DEVICE IS POSSIBLE ON UNIVERSAL EQUIPMENT. WHICH WILL ALLOW YOU TO QUICKLY START SERIAL PRODUCTION AND INCREASE THE PRODUCTION VOLUME OF THE DEVICE IN THE QUANTITIES REQUIRED BY THE ARMY.

WELL, THE NEED FOR SUCH DEVICES FOR THE ARMY IS, I’M SURE, OBVIOUS!

WHEN RECEIVING THE NECESSARY INVESTMENT, NO LATER THAN 6 MONTHS. WE’LL START FLIGHT TESTING!

TO PRODUCE THE DEVICE, THE AMOUNT OF ABOUT 200.000 euro IS REQUIRED. THIS IS NOT SUCH A SIGNIFICANT AMOUNT TO START PRODUCTION OF A DEVICE WHICH IS URGENTLY NEEDED BY THE DEFENDERS OF UKRAINE!

GLORY TO HEROES!!!
